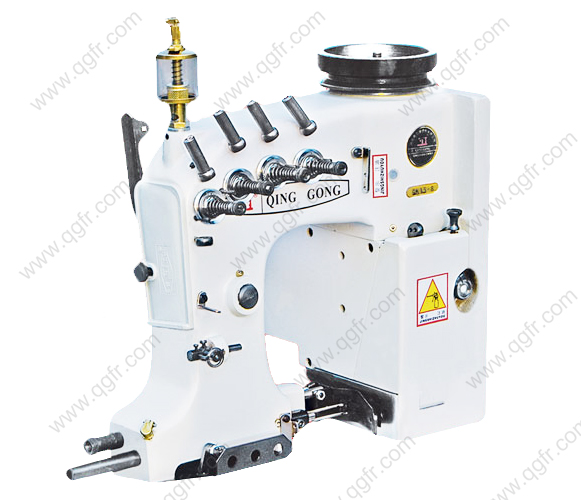

GK35-8/8A Double Needles Sewing Machine
product description
GK35-8 Double Needles Bag Closing Machine：Two-needle machine for plain closing of all kinds of filled bags，this model is a variation of Model GK35-2C, and is recommended to prevent leakage of the product by providing strong double seams.
1. Start-stop: actuated by foot switch of column
2. Thread chain cutter: by continuously driven nibbler knives
3. Standard needle: DN*2#
4. Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
5. Needle distance: 6 mm, staggered
6. Speed: up to 2000 RPM, depending on sewing material and operation
7. As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.

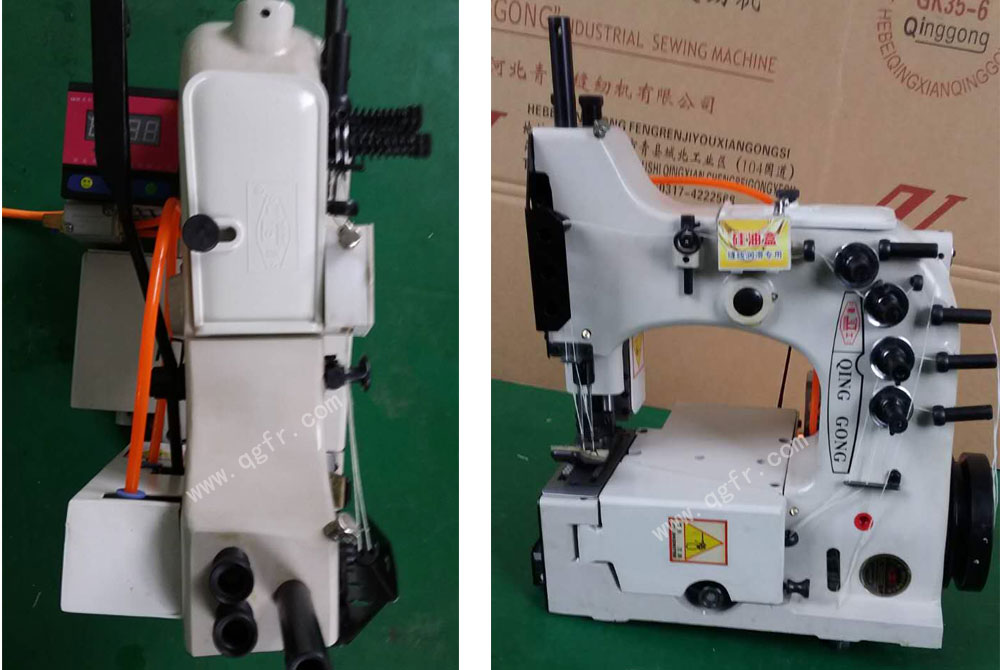

GK35-8A Double Needles Automatic Bag Closing Machine: The same with GK35-8 expect that equipped with photoswitch and electro-pneumatically operated scissors which can produce automatic start-stop and automatic thread cutting similar with GK35-6A.
1. Start-stop: actuated by foot switch of column
2. Thread chain cutter: by continuously driven nibbler knives
3. Standard needle: DN*2#
4. Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
5. Needle distance: 6 mm, staggered
6. Speed: up to 2000 RPM, depending on sewing material and operation
7. As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.
GK35-8A Double Needles Automatic Bag Closing Machine: The same with GK35-8 expect that equipped with photoswitch and electro-pneumatically operated scissors which can produce automatic start-stop and automatic thread cutting similar with GK35-6A.
Technical Parameters
| Speed (max.) | 2000r.p.m. |
| Sewing thickness | 8mm |
| Stitch length | 6.5-11mm |
| Needles distance | 6mm |
| Stitch type | double threads chain 401 |
| Thread | cotton, polyester 21S/5,21S/3 |
| Presser foot lift | 11-16mm |
| Needle type | DN*2# |
| Pulley diameter | φ 114mm |
| Power | 370w |
| Weight | 35KG |
| Dimension | 50cm * 50cm * 35cm |
