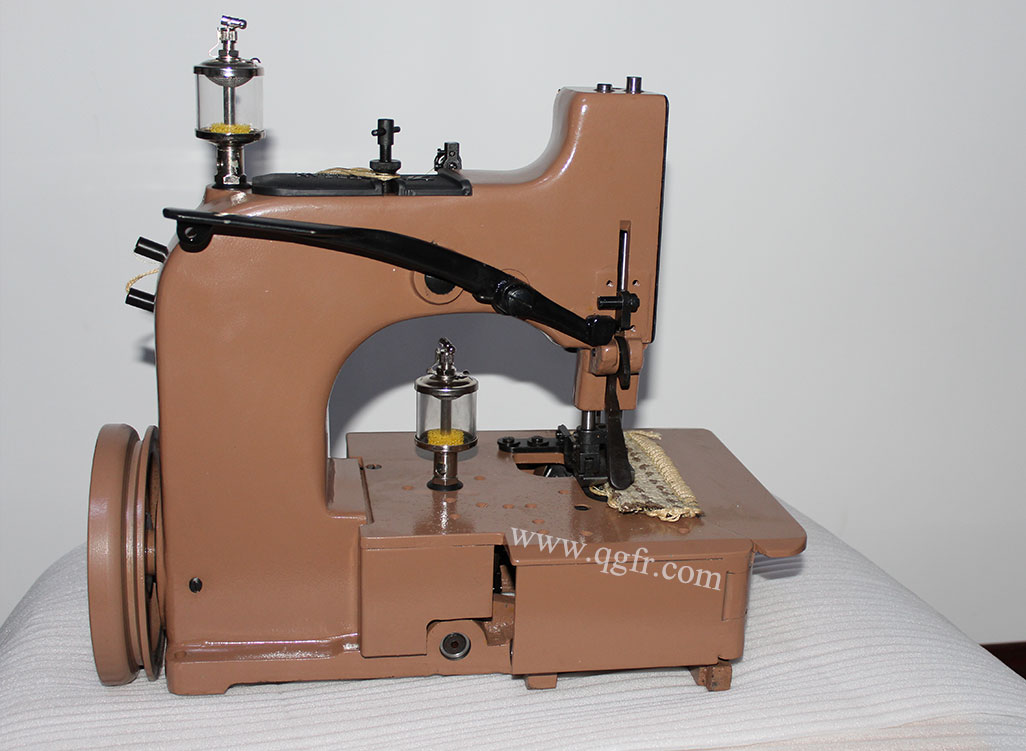

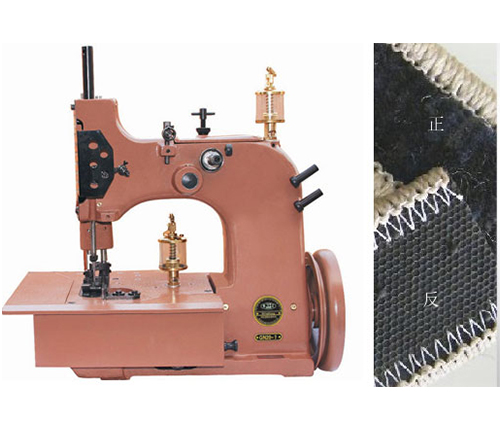

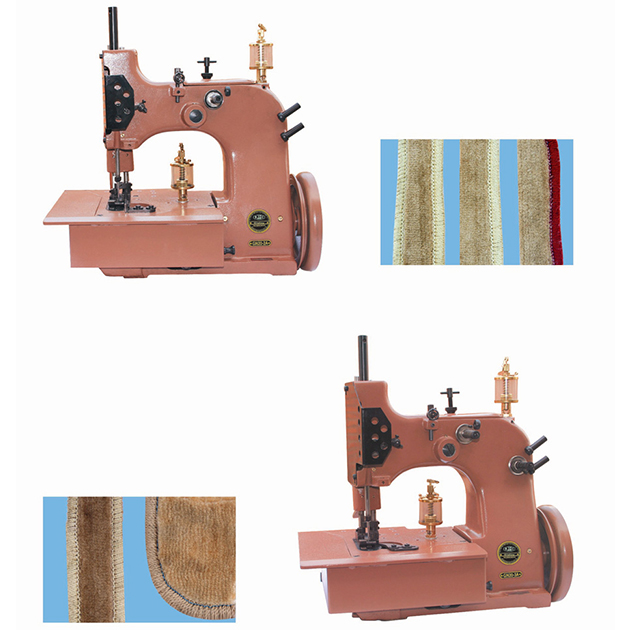

GN20-2A/3A Carpet Binding Machine
product description
GN20-2A/3A Carpet Binding Machine: Plain Feed, Flat Bed, over-seaming stitch machine designed in particular to sew on thick carpets and rugs. Heavy presser foot and feed-dog mechanism gives the machines greater feeding power than other lightweight machines in the market. This also helps achieve smooth operation even when sewing on heaviest of materials.
GN20-2A: single needle, double threads;
GN20-3A: single needle, three threads;
For decorative overedging of carpets, rugs, automobile carpet, etc;
Needle: 1;
Curved line sewing and small circles are available;
Stitch range: 2-4mm;
15mm overedge width (10mm and 18mm is available)
Max. speed: 1400rpm; Material thickness: 8mm
Technical Parameters
| Speed (max.) | 1400r/min |
| Sewing thickness | 10mm |
| Needle type | 80800*250# |
| Overedge width | 10-15mm |
| Power | 370W |
| Net weight | 35kg |
| Dimension | 445×245×375mm |
